The Stumpjumper Alloy brings all of the new, lust-worthy features of the Stumpjumper—like new suspension kinematics and geometry—into a full-alloy package that's both lightweight and extremely durable. Top it off with a no-fuss SRAM SX 12-speed groupset and you have the perfect ride for your next trail adventure.
All the travel in the world is useless without the proper kinematics, which is why we kept it at the forefront of the new Stumpjumper design. With the learnings from the suspension design on the Enduro, and over 1,000 hours of field and suspension lab development, we've greatly improved the pedaling performance, all while creating the capable, efficient, lively feelings that you long for. We increased anti-squat, so the suspension better-resists pedal bob, and then, we further-improved bump performance on square-edge hits. Bottom line? The all-new Stumpjumper descends with complete control yet climbs with ease.

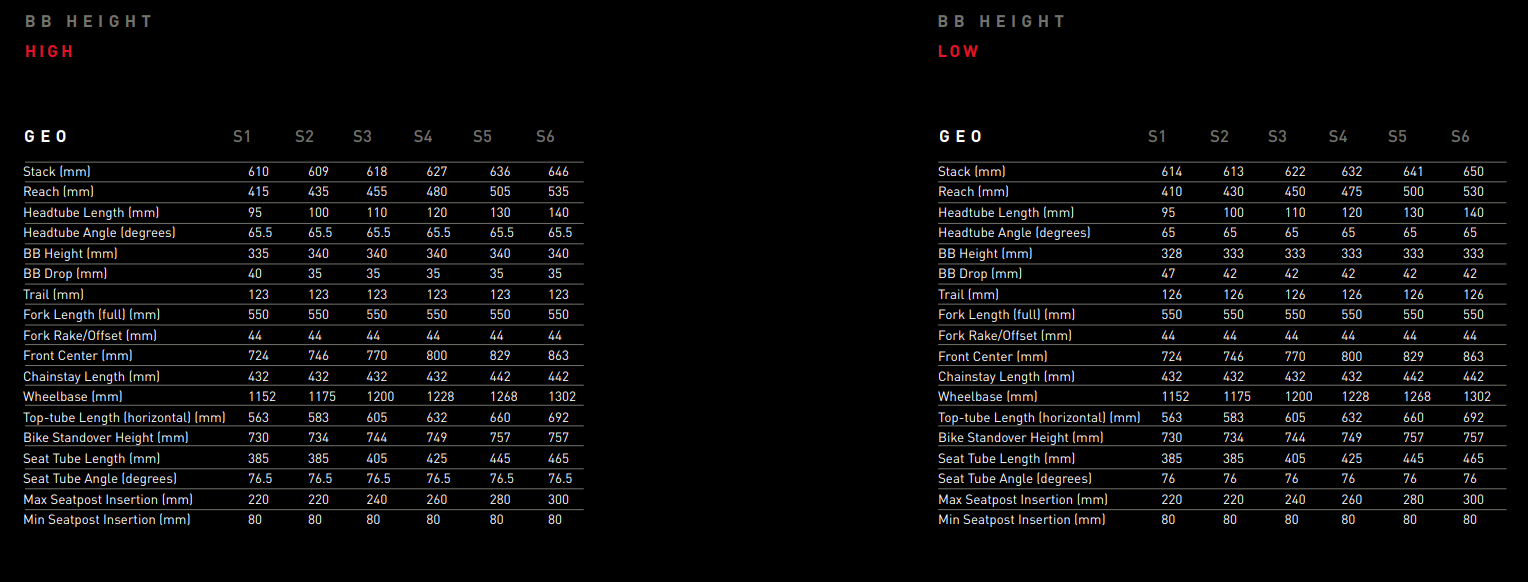

The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. Long, low, slack, a short offset fork, a steeper seat tube angle—they're all the talk of the town because they make your ride better. With Flip Chip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
|Frame||Alloy chassis and rear-end, asymmetrical design, 29 Trail Geometry, horst pivot BB adjustment, threaded BB, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel|
|Fork||RockShox 35 Silver, Solo Air, 44mm offset, rebound adjust, TurnKey lockout, 15x110mm Boost Maxle Lite thru-axle, 140mm of trave|
|Rear Shock||X-Fusion 02 Pro RL, Rx Trail Tune, rebound adjust, lockout S1:190x42.5mm, S2-S6: 190x45mm|
|Rims/Wheels||700c disc, double-wall alloy, sleeved, 32h|
Front: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Front: Butcher, GRID casing, GRIPTON compound, 29x2.3"
Rear: Purgatory, GRID Casing, GRIPTON compound, 29x2.3"
|Crankset||SRAM SX Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm|
|Chain||SRAM SX Eagle, 12-speed|
|Rear Derailleur||SRAM SX Eagle, 12-speed|
|Shifters||SRAM SX Eagle, trigger, 12-speed|
|Handlebars||Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width|
|Stem||Alloy Trail Stem, 35mm bar bore|
Front: Tektro Gemini Comp, hydraulic disc, resin pad, 200mm
Rear: Tektro Gemini Comp, hydraulic disc, resin pad, 180mm
|Saddle||Body Geometry Bridge Saddle, steel rails|
|Seat Post||TranzX dropper, 34.9mm, XS-S: 100mm, M: 120mm, L/XL: 150mm Travel|
* Subject to change without notice.
|Gloss Ca White Sage/Black / S1||888818752300||93322-7001|
|Gloss Ca White Sage/Black / S2||888818752454||93322-7002|
|Gloss Ca White Sage/Black / S3||888818752836||93322-7003||210000001014|
|Gloss Ca White Sage/Black / S4||888818752669||93322-7004||210000001125|
|Gloss Ca White Sage/Black / S5||888818752379||93322-7005|
|Gloss Ca White Sage/Black / S6||888818753321||93322-7006||210000001009|
|Satin Black/Smoke / S1||888818673889||93321-7001|
|Satin Black/Smoke / S2||888818673896||93321-7002||210000000914|
|Satin Black/Smoke / S3||888818673902||93321-7003||210000000779|
|Satin Black/Smoke / S4||888818673919||93321-7004||210000000931|
|Satin Black/Smoke / S5||888818673926||93321-7005|
|Satin Black/Smoke / S6||888818673933||93321-7006|
|Satin Blaze/Black / S1||888818673940||93321-7101|
|Satin Blaze/Black / S2||888818673957||93321-7102||210000000813|
|Satin Blaze/Black / S3||888818673964||93321-7103|
|Satin Blaze/Black / S4||888818673971||93321-7104|
|Satin Blaze/Black / S5||888818673988||93321-7105|
|Satin Blaze/Black / S6||888818673995||93321-7106|
