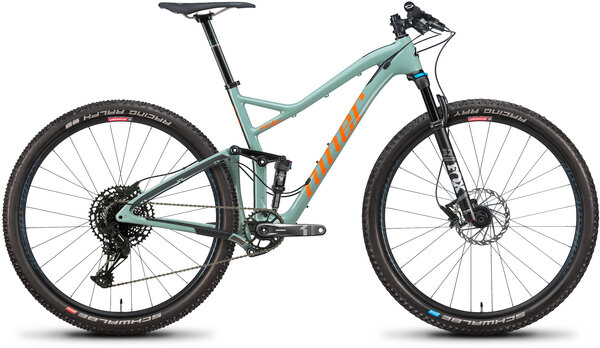

Niner RKT 9 RDO RS 2-Star SX Eagle

Niner RKT 9 RDO RS 2-Star SX Eagle
  • Color: Grey/Orange
  • Color: Satin Carbon/Magnetic Grey
$4,199.00
Color:
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

Details

Prepare for launch with the RKT 9 RDO RS, our original carbon fiber cross-country bike. With a 100mm suspension fork and 90mm of highly efficient, patented CVA suspension travel, this singletrack missile is made for race-day missions and lofty podium landings.

bike frame with labeled dimensions
Bike Sizes:
XSSMMDLGXL
A. Reach (mm) 393 406 424 441 458
B. Stack (mm) 584 591 600 609 619
C. Standover (mm) 696 702 728 763 802
D. Effective Top Tube (mm) 555 570 590 610 630
E. Head Tube Angle 70.5° 71° 71° 71° 71°
F. Head Tube Length (mm) 95 100 110 120 130
G. Seat Tube Angle 74.5° 74.5° 74.5° 74.5° 74.5°
H. Seat Tube Length (mm) 381 406 457 509 559
J. Bottom Bracket Drop (mm) 35 35 35 35 35
M. Wheelbase (mm) 1074 1084 1103 1125 1146
N. Front to Center (mm) 636 646 667 687 708
O. Chainstay Length (mm) 439 439 439 439 439

Specs

Frame NINER RDO CARBON FIBER, 90MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS
Fork FOX 32 FLOAT RHYTHM GRIP EVOL, SWEEP ADJUST, 100MM, 110X15MM, 44MM OFFSET
Rear Shock FOX FLOAT DPS PERFORMANCE EVOL 3 POSITION
Rims Niner Alloy, aluminum clincher, 25mm internal width
Hubs Niner Boost, 6-bolt
Axles Front: Boost 15x110mm thru axle
Rear: Boost 12x148mm thru axle
Tires FRONT: SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35
REAR: SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
Bottom Bracket SRAM DUB PF30
Crankset SRAM X1 1K EAGLE DUB, 32T (XS/S - 170MM, M/L/XL - 175MM)
Chainrings 32T
Shifters SRAM SX EAGLE 12SP
Rear Derailleur SRAM SX EAGLE 12SP
Cassette/Freewheel SRAM PG 1210 11-50T
Chain SRAM SX EAGLE 12SP
Brakes SRAM LEVEL
Brake Levers SRAM LEVEL
Handlebars NINER FLAT TOP ALLOY, 780MM, NINER GRAPHIC
Tape/Grips NINER GRRRIPS L/O NYLON SOFT COMPOUND
Stem NINER ALLOY STEM, NINER GRAPHIC (XS/S/M- 80MM, L/XL- 90MM)
Headset NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seatpost NINER ALLOY SEAT POST, 370MM, NINER GRAPHIC
Saddle NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC

* Subject to change without notice.

Part Numbers

Option UPC MPN
Grey/Orange / X-Small 047202202153 04-720-22-02-15
Grey/Orange / Small 047202203150 04-720-22-03-15
Grey/Orange / Medium 047202204157 04-720-22-04-15
Grey/Orange / Large 047202205154 04-720-22-05-15
Grey/Orange / X-Large 047202206151 04-720-22-06-15
Satin Carbon/Magnetic Grey / X-Small 047202202252 04-720-22-02-25
Satin Carbon/Magnetic Grey / Small 047202203259 04-720-22-03-25
Satin Carbon/Magnetic Grey / Medium 047202204256 04-720-22-04-25
Satin Carbon/Magnetic Grey / Large 047202205253 04-720-22-05-25
Satin Carbon/Magnetic Grey / X-Large 047202206250 04-720-22-06-25
