Niner RKT 9 RDO 3-Star GX Eagle AXS LTD

Niner RKT 9 RDO 3-Star GX Eagle AXS LTD
  • Color: Grey/Orange
  • Color: Satin Carbon/Magnetic Grey
$6,499.00
Please select options
Sorry, this item is currently not available. Please contact us to check availability.

Details

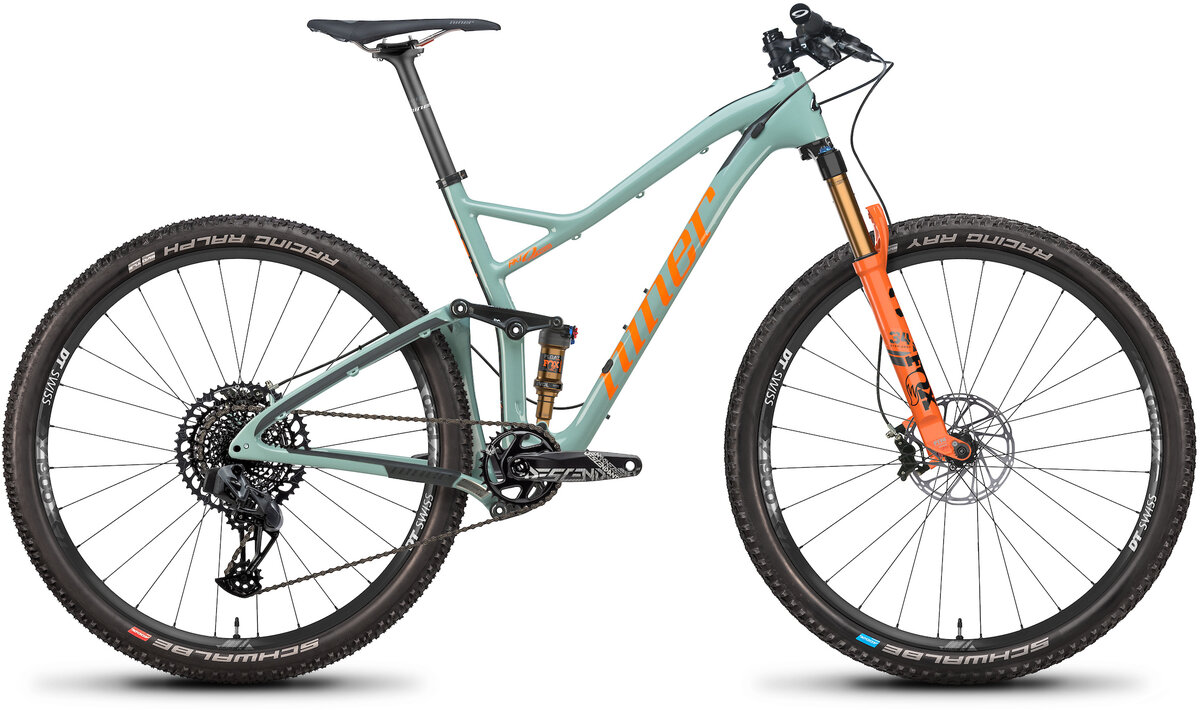

This RKT 9 RDO is more versatile with a stout 120mm suspension fork and slightly slacker geometry. It's a pedal friendly bike that's not afraid to get rowdy. With 90mm of efficient CVA rear suspension, you'll be quickest to the top of the climbs, yet pay no penalty going down.

bike frame with labeled dimensions
Bike Sizes:
XSSMMDLGXL
A. Reach 383 396 413 431 448
B. Stack (mm) 590 597 607 617 626
C. Standover (mm) 703 710 739 773 812
D. Effective Top Tube (mm) 559 574 594 614 634
E. Head Tube Angle 69.5 70° 70° 70° 70°
F. Head Tube Length (mm) 95 100 110 120 130
G. Seat Tube Angle 73.5° 73.5° 73.5° 73.5° 73.5°
H. Seat Tube Length (mm) 381 406 457 509 559
J. Bottom Bracket Drop (mm) 28 28 28 28 28
M. Wheelbase (mm) 1080 1090 1111 1132 1152
N. Front to Center (mm) 642 652 672 693 713
O. Chainstay Length (mm) 439 439 439 439 439

Specs

Frame NINER RDO CARBON FIBER, 90MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS
Fork FOX 34 SC FLOAT FACTORY EVOL FIT4, 3 POSITION W/ ADJ, KASHIMA COAT, 120MM, 110X15MM, 44MM OFFSET
Rear Shock FOX FLOAT DPS FACTORY EVOL, W/ REMOTE L/O, KASHIMA COAT
Rims DT Swiss X 1900 SPLINE, aluminum clincher, 25mm internal
Hubs DT Swiss 370 Centerlock, with 3-pawl
Spokes DT Champion straight pull
Axles Front: Boost 15x110mm thru axle
Rear: Boost 12x148mm thru axle
Tires FRONT: SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35
REAR: SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
Bottom Bracket SRAM DUB PF30
Crankset SRAM DESCENDANT 7K EAGLE DUB, 32T (XS/S - 170MM, M/L/XL - 175MM)
Chainrings 32T
Shifters SRAM GX EAGLE AXS 12SP
Rear Derailleur SRAM GX EAGLE AXS 12SP W/BATT. COVER
Cassette/Freewheel SRAM EAGLE XG 1275, 10-52T
Chain SRAM GX EAGLE 12SP
Brakes SRAM G2 R
Brake Levers SRAM G2 R
Handlebars NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
Tape/Grips NINER GRRRIPS L/O NYLON SOFT COMPOUND
Stem NINER ALLOY STEM, NINER GRAPHIC (XS/S/M- 80MM, L/XL- 90MM)
Headset NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seatpost NINER CARBON SEAT POST, 370MM, NINER GRAPHIC
Saddle NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC

* Subject to change without notice.

Part Numbers

Option UPC MPN
Grey/Orange / X-Small 047792202151 04-779-22-02-15
Grey/Orange / Small 047792203158 04-779-22-03-15
Grey/Orange / Medium 047792204155 04-779-22-04-15
Grey/Orange / Large 047792205152 04-779-22-05-15
Grey/Orange / X-Large 047792206159 04-779-22-06-15
Satin Carbon/Magnetic Grey / X-Small 047792202250 04-779-22-02-25
Satin Carbon/Magnetic Grey / Small 047792203257 04-779-22-03-25
Satin Carbon/Magnetic Grey / Medium 047792204254 04-779-22-04-25
Satin Carbon/Magnetic Grey / Large 047792205251 04-779-22-05-25
Satin Carbon/Magnetic Grey / X-Large 047792206258 04-779-22-06-25
